Ground Support Products by DSI stabilize Vienna’s longest Subway Line: U1 Southern Extension

Work is advancing on the extension of the southern U1 subway line in Vienna. The new section is 4.6km long, includes 5 stations and ends in Oberlaa. Beginning in 2017, the U1 subway line with a total length of 19.2km will be Vienna’s longest.

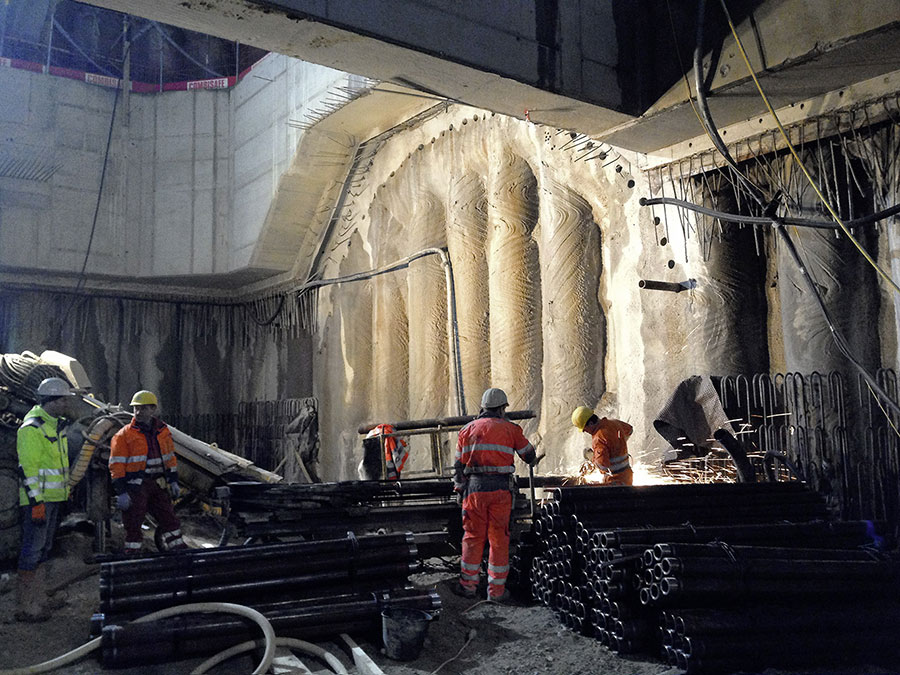

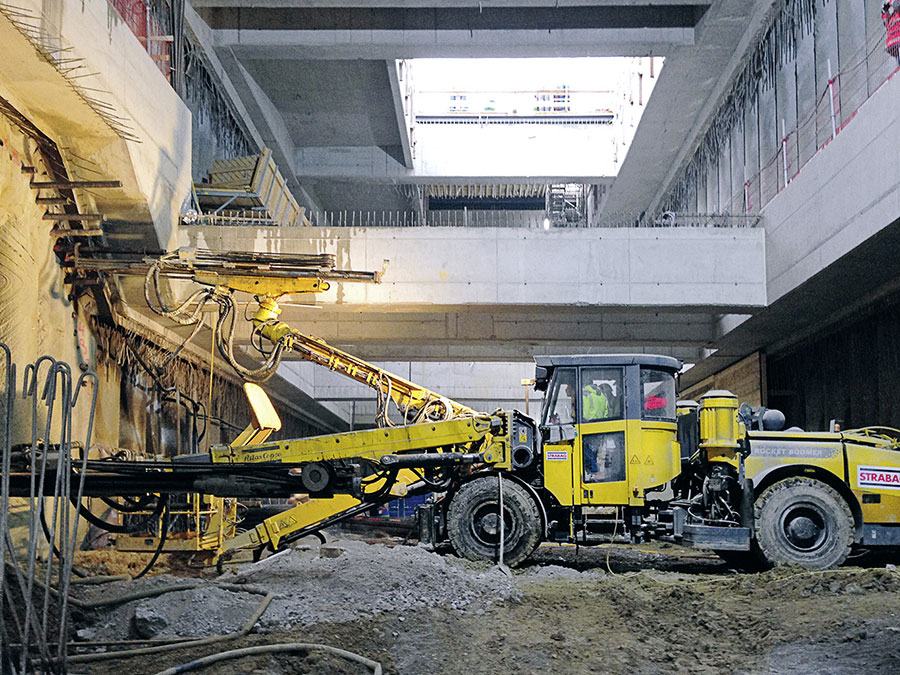

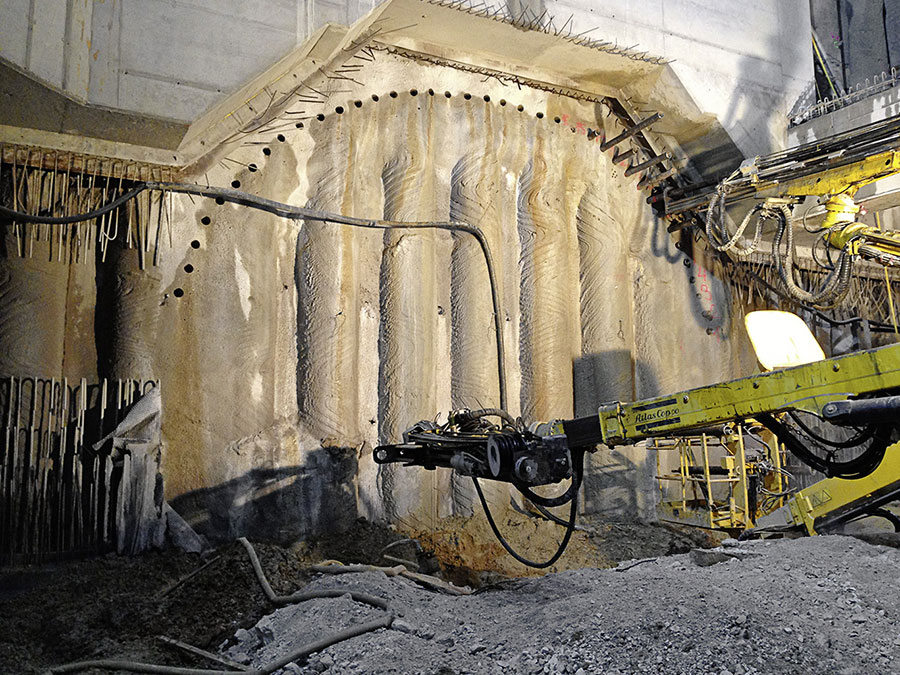

The new section runs primarily underground – only the southernmost section will be above ground. Because the two parallel, single-track tunnel tubes are partly located at a depth of nearly 20m, tunnel excavation posed challenges to the participating companies. The soil in this area is very cohesive, but also contains water-bearing strata that had to be drained. For this purpose, a large number of wells and water gages were built that were necessary for relieving the waterbearing layers. A large part of the subway station and tunnel sections as well as the crossways for this project were advanced using the New Austrian Tunneling Method (NATM). Most of the tunnel sections and crossways were advanced in a full-circle tunnel heading with an advancing crown being realized shortly before the invert. Ground support products that were used included spiles and forepoling boards in addition to reinforced shotcrete. For tunneling pre-support, DSI Austria supplied DSI GRP Anchors and GRP Mats, lagging sheets and the Ø R32 and Ø R38 DSI Hollow Bar System with accessories. Furthermore, DSI supplied Ø 51 x 3.2mm AT – TUBESPILE Vacuum Lances with accessories. 3-bar Lattice Girders were used for immediate support in the open span area. In addition, the Type AT – 114 Pipe Umbrella System with nipple connections was used for presupport. DSI’s high quality products provide optimum support for local unstable areas in the work area and prevent stress relaxation during installation.

Wiener Linien GmbH & Co KG, Austria
General Contractor
Consulting Engineers
Wiener Linien GmbH & Co KG, Austria
DSI Unit
DSI Underground, Austria
DSI Scope
Production, supply, installation, engineering services, technical support
DSI Products
DSI GRP Anchors and GRP Mats, Ø R32 and Ø R38 DSI Hollow Bar System with Accessories, lagging sheets, Ø 51 x 3.2mm AT – TUBESPILE Vacuum Lances, Lattice Girders, Type 114 AT – Pipe Umbrella System
